MIL-DTL-81706
Specifications

Technical Notes

Types

The chemical conversion materials are of the following types:

  • Type I – Compositions containing hexavalent chromium
  • Type II – Compositions containing no hexavalent chromium

Classes

The materials, which form protective coatings by chemical reaction with aluminum and aluminum alloys, are of the following classes:

  • Class 1A – For maximum protection against corrosion, painted or unpainted
  • Class 3 – For protection against corrosion where low electrical resistance is required

Material Forms

Chemical conversion materials are of the following forms:

  • Form I – Concentrated liquid
  • Form II – Powder
  • Form III – Premixed liquid (ready for use touch-up brush application)
  • Form IV – Premixed liquid, thixotropic (ready for use)
  • Form V – Premeasured powder, thixotropic (ready for use after addition of water)
  • Form VI – Premixed liquid (ready for touch-up use in self-contained applicator device)

Application Methods

Chemical conversion materials are of the following application methods:

  • Method A – Spray
  • Method B – Brush-on or wipe-on
  • Method C – Immersion
  • Method D – Applicator pen or pre-saturated applicator device

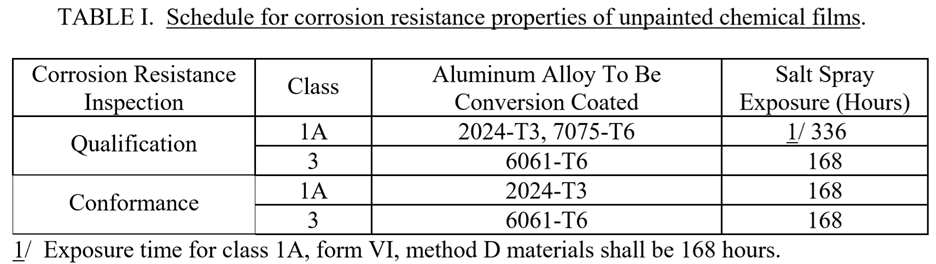

MIL-DTL-81706
